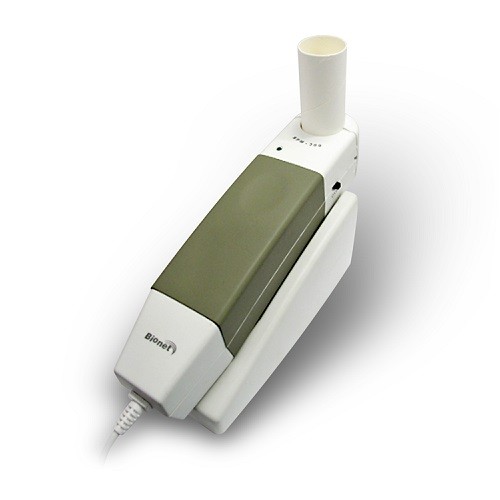

Bionet Spirometer SPM-300

SPM-300 is spirometer sensor which works with the CardioTouch3000 and Cardio7. SPM-300 uses a disposable sensor, so it is very easy to maintain because the sensor does not need to be disinfected between uses. These disposable sensors make an accurate measurement possible every time.
SPM-300 is a spirometer sensor which works with the CardioTouch3000 and Cardio7.

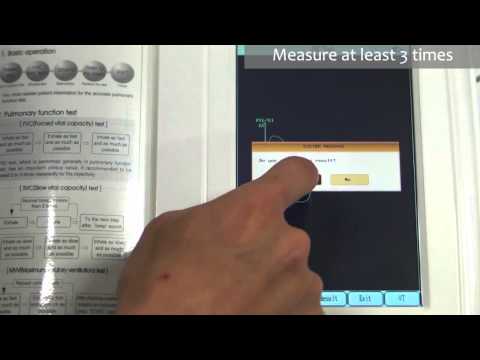

By adding the SPM-300 to the CardioTouch3000 or Cardio7, you can test FVC, SVC, MVV and perform a pre-post Bronchodilator comparison. Real-time volume-flow and time-flow monitoring is provided on the color LCD display. 120 tests are stored and a full size printout is provided for easy charting.

The disposable mouth piece, SmarTube, is used. This makes it is very easy to maintain the system because the sensor does not need to be disinfected between uses. These disposable sensors make an accurate measurement possible every time.

• Dimension 47 (W) x 200 (H) x 34 (D)mm, approx. 250g
• Measuring Values FVC: FVC, FEV 1.0, FEV 1/FVC, FEF 0.2 - 1.2L, FEF 25 - 75%, FEF 75 - 85%, PEF, FEF 25%, FEF 50%, FEF 75%, FIVC, FEV6, PEFT, FET 100%
• SVC: SVC, ERV, IRV, TV, EC
• MVV: MVV, FB, TV
• Presentation Flow volume loop
• Flow time plot
• Measurment values table
• Measuring range Flow: 0 to ±14 L/s
• Volume: 0 to ± 12L
• Measuring method Differential pressure method
• Prediction equation Morris-Polgar, ECCS-Quanjer, Knudson-ITS, Pereira, Korea CJK
• Sample rate 200 samples/sec
• Flow impedance <0.2 mbar s/l at 12 l/s
• Measuring accuracy Complies with ATS
• (American Thoracic Society)
• Environment Ambient temperature: 15 to 40°C (59 to 104°F)
• Relative humidity: 10 to 90% (non-condensing)
• Atmospheric pressure: 700 to 1060 hPa

Standard accessories

• Disposable mouthpiece (100 ea)
• Nose clip (1 ea.)
• Adapter (1 ea.)
• Handle dock (1 ea.)
• Operation manual (1 ea.)
• Diagnosis guide (1 ea.)

* Specifications can be changed without prior notification.
