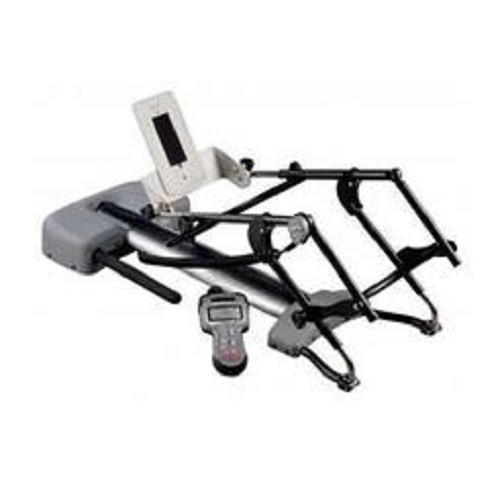

Chattanooga OptiFlex 3 CPM Unit - Includes (1) 20533 Patient Kit 2090K

Designed to provide anatomical motion for CPM Knee Patients from Pediatric to Adult

Features:

• Easy-to-read backlit display
• On-board power supply along with surface mount electronics to maximize reliability
• Force Reversal safety feature lets you safely set amount of passive force without causing unnecessary postsurgical pain
• Wide carriage – 11” (28 cm) from center of carriage
• Independent delay time
• Patient lockout feature
• Universal left/right design
• Patient compliance/usage meter
• Quick conversion from adult to pediatric
• Two-year warranty

Technical Specifications:

• Knee Flexion: 120°
• Knee Extension: -10°
• Speed: 30° - 150°/minute
• Pauses: 0 - 30 seconds
• Force Reversal: 35 - 75 lb (16 - 34 kg)
• Maximum Patient Weight: 350 lb (159 kg)
• Calf Length Range (knee joint to sole of foot):
• 10” - 23.5” (25.4 - 59.7 cm)
• Thigh Length Range: 12” - 19” (30.5 - 48.3 cm)
• Mains Power: 100 - 240 V, 50/60 Hz
• Unit Weight: 27 lb (12 kg)
• Shipping Weight: 41 lb (18.6 kg)
• Length: 37” (94 cm)
• Electrical Safety Class: Class 1, Type B
• Safety Tests: UL/IEC/EN 60601-1, IEC/EN 60601-1-2:2001
