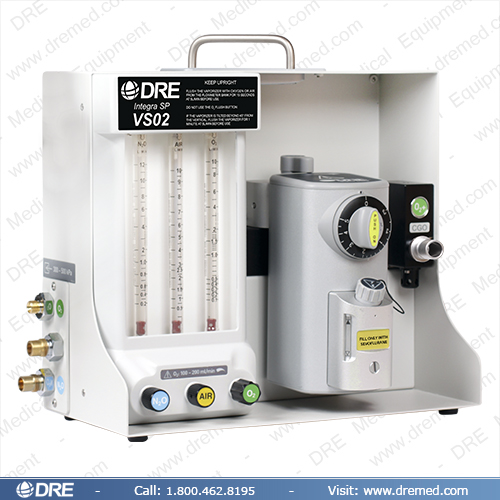

Máquina de Anestesia Portátil DRE Integra SP VS02
0 Los artículos están en tu carrito. Mirar Carrito ya.
¿Necesita asesoramiento sobre los equipos? ¡Pregunte a Nuestros Expertos!
(502) 244-6333
Descripción
Completamente nueva y cuenta con:
- Capacidad de sostener un vaporizador
- Diseño compacto y ligero
- Compatible con resonancia magnética
- Mangueras para oxígeno, nitroso y aire
- Puede agregar ventilador mecánico y/o maleta opcionalmente
Especificaciones
Physical Weight & Dimensions
- Height: 13.8 inches (35 cm)
- Width: 19.7 inches (50 cm)
- Depth: 7.9 inches (20 cm)
- Weight (without vaporizer): 26 lbs (12 kg)
Flowmeters
- Flow Range: Oxygen / Air / Nitrous Oxide: 0 - 10 L/min
- Flowmeter Accuracy: ± 2.5% full scale reading
- Flowmeter construction and dimensions: Tubes and floats are matched, and must not be interchanged. Flowmeter tubes have antistatic coatings
Oxygen Failure Warning Devices
- Gas system whistle
- Visual indicator, direct pressure operated
Oxygen Flush
- Button on front edge worksurface
- The system supplies 35 - 75 L/min when the button is fully depressed
Mechanical AHD System
- Minimum oxygen concentration: 30% ± 3% ( total O2 + N2O flow)
- Basal flow - oxygen: 100 - 200 mL/min
Environmental
- Operating Temperature: + 10 to 38°C (50 to 100°F)
- Operating Atmospheric Pressure Range: 70 to 106 kPa
- Operating Altitude: 2438 m (8000 ft) maximum
- Operating Humidity: 10 - 85% R.H. non-condensing
- Transport / Storage Temperature: -5 to 40°C (23 to 104°F)
- Cleaning: Wipe external surfaces with dry or damp cloth. Use mild soap, or disinfectant solution if necessary.
Suministros y Accesorioss
| Web ID | Vaporizadores de Anestesia | |
|---|---|---|
| 56 | Este nuevo vaporizador está diseñado para el flujo continuo de anestesia. | |
| 1470 | Anesthesia Vaporizer Cleaning Calibration Maintenance Services |
Que dicen nuestros clientes sobre este artículo
Over the last 3 years, I have purchased twelve DRE Integra VSO2 machines, and use them at several different anesthetizing locations. When I was looking to buy a mobile anesthesia machine, I required that it be able to deliver N2O, and the DRE Integra VSO2 was the only one that I felt comfortable with that could reliably and safely do so. With DRE's help, we had them all configured in the exact same way, so that any one of the partners can show up in any office, 'plug and play', and within a few minutes be up and working in no time.Dr. Marlon Michel President, M2 Anesthesia
