Description
One-channel ECG that is accurate, portable and affordable

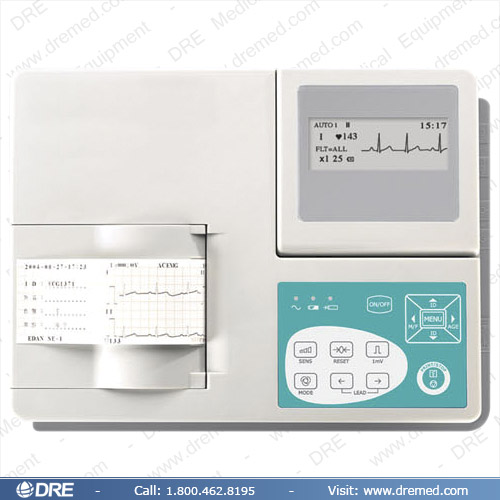

DRE True ECG-1 One-channel EKG
- Built-in high-resolution thermal printer
- Built-in rechargeable Li-ion battery and AC/DC power supply
- Digital filtering (resists baseline drift, AC and EMG interference)
- Auto/manual work modes,
Specifications
General
- Input Circuit Defibrillator protection built-in
- Lead Standard 12 leads
- Acquisition Mode Single lead
- A/D Converter 12 bits
- Measurement Range ±5mVpp
- Time Constant > 3.2s
- Frequency Response 0.05Hz ~ 150Hz
- Calibration Voltage 1mV ± 3%
- Sensitivity 2.5, 5, 10, 20 (mm/mv)
- Input Impedance > 10M Ω
- Input Circuit Current
- Noise Level
- Anti-Baseline Drift Auto
- Patient Leakage Current
- Patient Auxiliary Current
- Filter - EMG Filter 35Hz (-3dB) - AC Filter 50 Hz/60Hz (-20dB)
- CMRR >90dB
- Weight 2.3 kg (w/ battery)
- Display 192 × 64 pixels LCD
- Recording Mode - Auto 1CH, 1CH+1R – Manual 1CH
- Rhythm Lead Any lead selectable
- Power Supply – AC 100V-115V / 220V-240V, 50/60Hz – Built-in rechargeable Li-ion battery Voltage=14.4V
- More than 3 hours continuous work under battery supply
- Recorder Thermal printer
- Record Paper 500mm × 30m
- Paper Speed 25mm/s, 50mm/s (± 3%)
- Dimension 288mm × 210mm × 70mm
- External Input/Output – Input >100 k Ω; Sensitivity 10mm/V ± 5% – Output
- Communication Interface RS232
