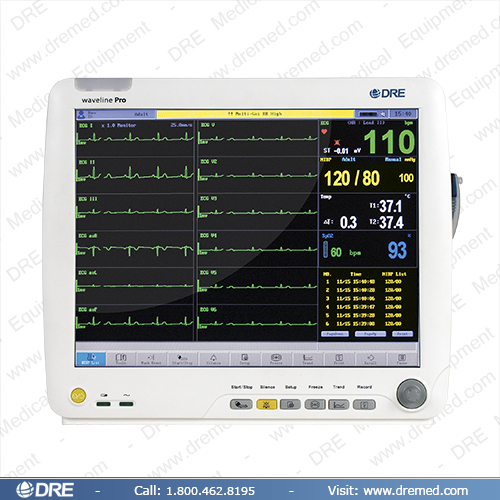

DRE Waveline Pro Monitor con gas para Anestesia
0 Los artículos están en tu carrito. Mirar Carrito ya.
¿Necesita asesoramiento sobre los equipos? ¡Pregunte a Nuestros Expertos!
(502) 244-6333
Descripción
Flexibilidad y funcionamiento superior con una pantalla de prima calidad
El monitor de DRE €œWaveline Pro” muestra hasta 8 ondas de informacion medica en color en una pantalla de casi 35 cm de alta resolucion. El Waveline Pro es ligero, portatil y mide varios parametros, incluso ECG (de 3 o 5 sensores) con medida de ST segmentada, respiracion, temperatura dual, SpO2 y presion non-invasiva. Configuraciones son disponibles que miden capnografia, presion invasiva de emisora dual, y agentes de anestesia (5 agentes N2O, FiO2, EtCO2) y que tienen un imprimador termal incorporado.
Vistazo Rapidito del Monitor
- Muestra hasta 8 ondas de informacion
- Medida de ECG con sensores multiples
- Se puede poner los limites para los alarmas en puesto automatico
- Muestra tendencias en forma grafica y tabular
- Alarmas con codigos de color
- La informacion del paciente puede ser metido
- Apoyo respaldo de bateria
- Capabilidad de conectar a un ordenador de red
- Una pantalla grande de casi 35cm y de alta resolucion
- Disponible con un imprimador termal incorporado
Especificaciones
Performance
- Display: 15-inch color touch-screen
- Trace: 8 waveforms
- Indicator:
- Alarm indicator
- Power indicator
- QRS beep and alarm sound
- Trend time: 1 - 72 hour
- Recorder:
- Built-in, thermal array, 3 channels
- Record width: 48mm
- Recorder paper: 50mm
- Record speed: 25mm/s, 50mm/s
ECG
- Input: 5-lead ECG cable and standard AAMI line for connection
- Lead Choice: I, II, III, aVR, aVF, aVL, V, V1-V6, TEST
- Gain Choice : x0.5, x1, x2, x4
- Frequency Characteristic: 0.05 ~ 35 HZ (+3dB)
- ECG Waveforms: 7 channels
- Penetration Voltage: 4000VAC 50/60Hz
- Sweep Speed: 12.5, 25, 50 and 100 mm/sec (left to right or right to left)
- HR Display Range: 30 ~ 300bpm
- Accuracy: ±1bpm or ±1%, whichever is greater
- Alarm Limit Range Setting:
- Upper limit 100 ~ 200bpm,
- Uower limit 30 ~ 100bpm
RESP
- Measure Method: RA-LL impedance
- Range: 0 ~ 120 rpm
- Accuracy: ±3 rpm
- Alarm Limit Setting:
- Upper limit 6 ~ 120 rpm,
- Lower limit 3 ~ 120 rpm
- Sweep Speed: 12.5, 25, 50 and 100 mm/sec (left to right or right to left)
NIBP
- Measuring Technology: automatic oscillating measurement
- Cuff Inflating: <30s (0 ~ 300 mmHg, standard adult cuff)
- Measuring Period: AVE<40s
- Mode: Manual, Auto
- Measuring Interval in AUTO Mode: 2 min ~ 4 hrs
- Pulse Rate Range: 30 ~ 250 (bpm)
- Measuring Range:
- Adult/Pediatric Mode: SYS: 40 ~ 250 (mmHg)
- DIA :15 ~ 200 (mmHg)
- Neonatal Mode: SYS: 40 ~ 135 (mmHg)
- DIA : 15 ~ 100 (mmHg)
- Accuracy:
- Maximum Mean error: ±5mmHg
- Maximum Standard deviation: 8mmHg
TEMP
- Range: 25 ~ 50 (°C)
- Accuracy:
- ± 0.2°C (25.0 ~ 34.9°C)
- ± 0.1°C (35.0 ~ 39.9°C)
- ± 0.2°C (40.0 ~ 44.9°C)
- ± 0.3°C (45.0 ~ 50.0°C)
- Display Resolution: 0.1°C
- Alarm Limit Setting:
- upper limit 0 ~ 50°C,
- lower limit 0 ~ 50°C
- Channel: 2 channels
Masimo SET SpO2
- SpO2 Accuracy (non-motion):
- Adult Pediatric: 70～100 %: ±2 %, 0～69%: unspecified
- Neonate: 70～100 %: ± 3 %,0～69 %: unspecified
- SpO2 Accuracy (motion):
- Adult Pediatric: 70～100 %: ±3 %, 0～69%: unspecified
- Neonate: 70～100 %: ± 3 %, 0～69 % : unspecified
- Low Perfusion Performance: >0.02 % Pulse Amplitude and % Transmission >5
- SpO2: ±2 %
- PR: ±3 bpm
- Modes:
- Averaging mode: 2,4,8,10,12,14 and 16 s
- Sensitivity: Normal, APOD and Maximum
- PR Accuracy (non-motion):
- Neonate: 70～100 %: ± 3 %, 0～69 % : unspecified
- Adult Pediatric Neonate: 25～240 bpm: ±3 bpm
- PR Accuracy (motion):
- Adult Pediatric Neonate: 25～240 bpm: ±5 bpm
- Measuring Range:
- SpO2: 1～100 %
- PR: 25～240 bpm
- Perfusion: 0.02～20 %
IBP
- Measurement Range: -50 ~ 300mmHg
- Channel: 2 channels
- Pressure Transducer: sensitivity, 5µV/V/mmHg
- Impedance Range: 300 ~ 3000ω
- Transducer Sites: ART, PA,CVP, RAP, LAP, ICP
- Unit: mmHg/kPa selectable
- Resolution: 1mmHg
- Accurancy: ±1mmHg or ±2%,whichever is greater
- AlarmRange: -10 ~ 300mmHg
EtCO2 (Optional)
- CO2 Measurement Range: 0 ~ 99mmHg
- Accuracy:
- ±2mmHg (0 ~ 38mmHg)
- 39-99mmHg ±5% of reading +0.08% for every 1mmHg (above 38mmHg)
- Sampling Rate: 50 ml/min
- Initialization Time: 30 seconds (typical), reaches ±5% steady-state accuracy within 3 minutes.
- Respiration Rate: 0 ~ 150 breaths/min
- Mode: adult, neonate
Cardiac Output (Optional)
- Measurement Method: Thermodilution Method
- CO2 Measurement Range:
- C.O.: 0.1 to 20 L/min
- TB: 23 to 43
- TI: 0 to 27
- Resolution:
- C.O.: ±5% or ±0.1 L/min, whichever is greater, as measured using electornically generated flow curves.
- TB, TI: 0.1
- Accuracy:
- ±5 or ±0.1 L/min, whichever is greater, as measured using electronically generated flow curves.
- TB, TI ±0.1 (without sensor)
- Alarm Range: TB 23 to 43
- Repeatability: C.O. ±2% or 0.1 L/min, whichever is greater, as measured using electronically generated flow curves.
Anesthetic Agents (Optional)
- Method: Infrared absorption
- Gas Sorts: Halothane, Isoflurane, Enflurane, Sevoflurane, Desflurane, CO2, N2O, O2 (optional Automatic Agent ID)
- Measurement Range:
- Halothane, Isoflurane: 0 - 8.5%
- Enflurane, Sevoflurane: 0 - 10%
- Desflurane: 0 - 20%
- CO2: 0 - 10%
- N2O: 0 - 100%
- O2: 0 - 100%
- Bias:
- Halothane, Isoflurane, Enflurane, Sevoflurane, Desflurane: ±(0.15 Vol% + 15% rel.)
- CO2: ±(0.5 Vol% + 12% rel.)
- N2O: ± (2 Vol% + 8% rel.)
- O2: ±3 Vol%
Networking
Industry standard 802.11b/g wireless network
Power
- Source: External AC power or internal battery
- AC Power: 100 - 240VAC, 50/60Hz, 150VA
- Battery: Built-in and rechargeable lithium ion
- Operating TIme: 3+ hours
Environmental
- Temperature:
- Operating: 5° - 40° C
- Storage: -20° - 65° C
- Humidity Range:
- Operating: ≤;80 %
- Storage: ≤80 %
Other Standard Feature
OxyCRG, drug dose calculation, cascading ECG, On screen NIPB trends (up to 250 readings), user set defaults, Arrhythmia detection, ST segment
